Tread 5.5''- Base Edition, Powersport Navigator - by Garmin

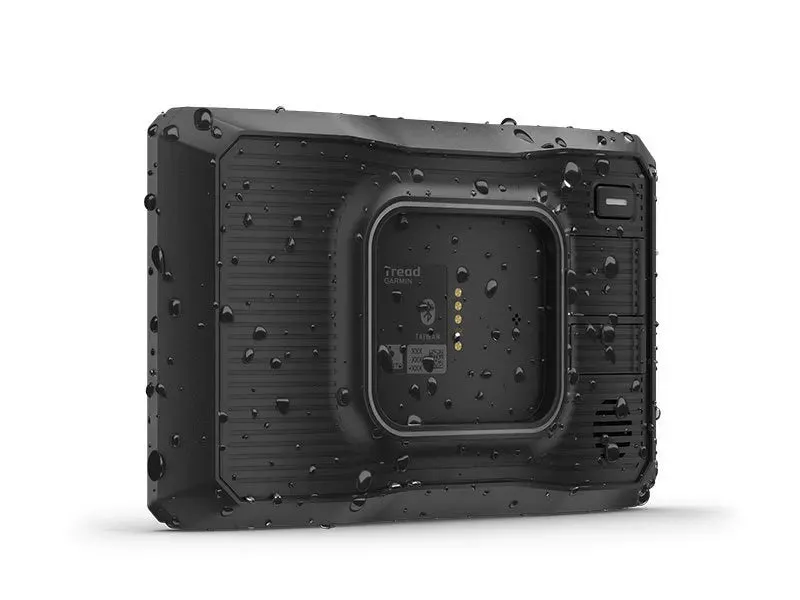

This off road GPS is made for all-terrain use and can withstand whatever Mother Nature throws at it. It complies with IPX7 standards for water resistance and meets US military standard 810 for thermal and shock resistance.

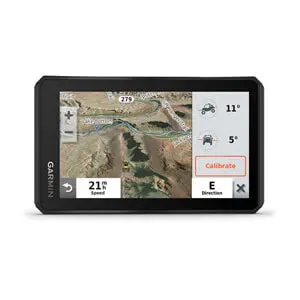

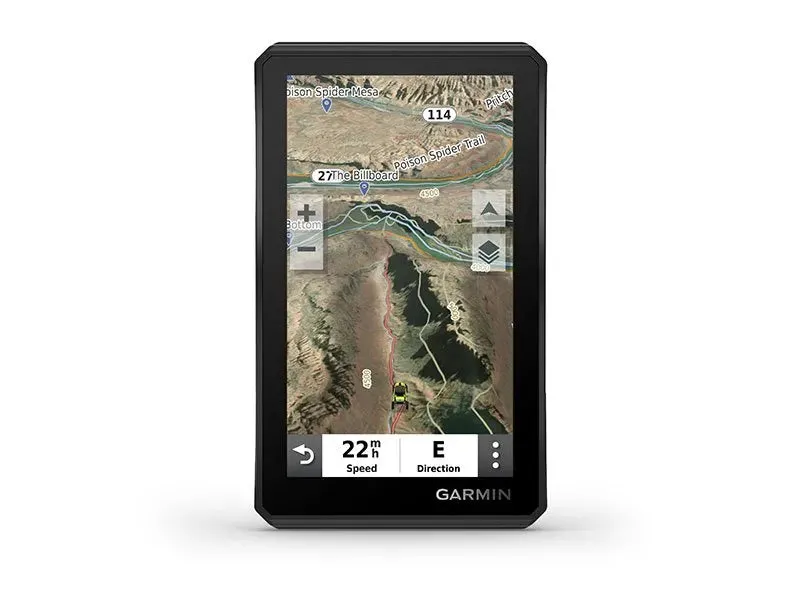

The ultrabright 5.5" glove-friendly touchscreen on the Tread navigator is designed for easy viewing in bright sunlight or complete darkness. It can be installed in either portrait or landscape mode.
When using Adventure Roads and Trails map content, such as OpenStreetMapTM and USFS Motor Vehicle Use Maps, turn-by-turn trail navigation3 is available. There is no need for an annual subscription to download high-resolution BirdsEye Satellite Imagery directly via Wi-Fi connectivity.
Its design incorporates sensors for tough-terrain navigation such as an altimeter, barometer, compass, and pitch/roll gauges.
Physical Specs & Performance:
| Display Size | 4.8”W x 2.7”H (12.1 x 6.8 cm); 5.5” diagonal (13.9 cm) |
| Battery type | rechargeable lithium-ion |
| Display resolution | 1280 x 720 pixels |
| GPS | Yes |
| Dimension | 5.8”W x 3.5”H x 1”D (8.8 x 14.8 x 2.4 cm) |
| Weight |
9.2 oz (262 g) |
| Display Type | multi-touch, glass, high brightness HD color TFT with white backlight |
| Battery life |
up to 6 hours (up to 3.5 hours at 100% backlight) |
| Waterproof | IPX7 |
Maps & Navigation:
| Navigate-a-track navigation | Yes |
| Preloaded street maps | Yes |
| External memory storage | yes (256 GB max microSD™ card) |
| Ability to add maps | Yes |
Features:
| Ultimate Public Campgrounds | Yes |
| Wi-Fi® map and software updates | Yes |
| Automatically identifies areas of biggest time gain | No |
| Round trip routing | No |
| Speed limit changes | No |
| Speed limit indicator (displays speed limit for most major roads in the U.S. and Europe) | Yes |
| Magnetic Mount | No |
| Access to live services via app (traffic, weather, etc.) | Yes |
| Interior and exterior recording | No |
| Rider alert warnings for sharp curves, state helmet laws, speed cameras and more | No |
| Preloaded private land parcel maps | Yes |
| Service History Log | No |
| Garmin Connect™ compatible | No |
| Current weather plus 5 day forecast via Wi-Fi | No |
| Simple truck profile | No |
| LiveTrack via app | No |
| RV Parks & Services directory | No |
| Group Ride Mobile | yes (with Garmin Tread app) |
| True Optimal Lap™ with video | No |
| Voice-activated navigation (operate device with spoken commands) | No |
| Built-in inReach® Technology (requires active subscription; subject to regulations or prohibitions in some jurisdictions) | No |
| Headphone jack/audio line-out | No |
| Control music and media from smartphone or MP3 player | No |
| Number of switch outputs | No |
| Route shaping through preferred cities/streets | Yes |
| Stream media and Alexa responses through vehicle stereo | No |
| Trucking points of interest | No |
| Requires cellular data connection | No |
| Driving performance scores | No |
| True Track Positioning™ (your racing line) | No |
| Wireless ANT ® technology | No |
| Segment analysis (racing line, speed and acceleration/deceleration) | No |
| Pair with compatible inReach® devices | Yes |
| Smart notifications via app | Yes |
| Truck & Trailer Services directory | No |
| Dust rating | No |
| Mile marker info - Trucking | No |
| Includes map updates | Yes |
| Barometric altimeter | Yes |
| Dual-orientation display | Yes |
| Planned & dynamic fuel stops | No |
| Includes traffic | yes (with Garmin Tread app) |
| Handlebar mount (up to 1") | No |
| Fist mic compatibility | Also works with other MURS VHF radios (151 MHz - 154 MHz) |
| Compatible with external inReach® satellite antenna | Yes |
| Pitch and Roll gauges | Yes |
| Sunrise/sunset times - RV | No |
| BLUETOOTH® connectivity | No |
| Mile marker info - RV | No |
| State & country border notices - Trucking | No |
| Motorcycle or powersports specific points of interest for cycle repair services, dealers and more | No |
| Radio Frequency Band | MURS (151-154 MHz) |
| State border notices - RV | No |
| Helmet law notifications | No |
| 2 microphones; beam-forming technology | No |
| Drop rating | MIL-STD-810 |
| Load-to-dock guidance | No |
| Track support | No |
| Turn-by-turn trail navigation | Yes |
| Radio transmitted canned messages | Yes |
| Birdseye Satellite Imagery (download via Wi-Fi) | Yes |
| Internal storage | 32 GB |
| HOS violation warnings | No |
| 1" ball adapter with AMPS plate | Yes |
| Data cards | microSD™ card (not included) |
| Built-in Alexa | No |
| Screw-down mount | No |
| Garmin Real Directions™ landmark guidance | Yes |
| Lane assist with junction view (displays junction signs) | Yes |
| Backup camera compatible | yes (BC™ 40) |
| iOverlander™ points of interest | Yes |
| Clarity ™ HDR | No |
| Max amps per switch output | No |
| Sunlight readable and weather resistant | No |
| Group Ride voice communications | yes (with included fist mic or paired BLUETOOTH headset) |
| Includes automotive mount | No |
| Supports multiple users | No |
| IFTA fuel logging capability | No |
| Stores history of all on-track performance | No |
| Group Ride update rate | 2.5 sec |
| Preloaded topographical maps | Yes |
| Number of hardwire inputs | No |
| Track recorder (breadcrumbs) | Yes |
| Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SXS and full-size 4x4 | Yes |
| VIRB® control | No |
| GLONASS | No |
| Downloadable Satellite Imagery | yes (BirdsEye) |
| Preloaded global track database | No |
| TripAdvisor® Traveler Ratings | Yes |
| Group Ride tracking | up to 20 riders simultaneously |
| Built-in Spotify® & Pandora® music players | No |
| Removable battery | No |
| Audio line-out/headphone jack | No |
| Garmin Adventurous Routing™ | No |
| Glove-friendly touchscreen | No |
| Dog tracking | yes (when paired to compatible dog track system) |
| Powered magnetic mount | No |
| Image processing | No |
| Session comparisons | No |
| Elevation profile | No |
| Custom map support | No |
| Sunrise/sunset times - Trucking | No |
| 3D Terrain | Yes |
| Compatible with Group Ride Radio | Yes (included) |
| TOPO map support | No |
| Point-to-point navigation | Yes |
| Millions of Foursquare® points of interest | No |
| Tube mount (1.5" - 2.375") | Yes |
| Built-in accelerometers | No |
| Interior night vision | No |
| GPS speed and location info in video | No |
| Built-in dash camera with automatic incident detection | No |
| Driver alerts for sharp curves, school zones, red light and speed camera warnings and more | No |
| Preloaded US public land boundaries | Yes |
| Compatible with external GPS antenna with mount | Yes |
| Camera-assisted features for forward collision warnings, lane departure warnings, "Go" alert and Garmin Real Vision™ | No |
| Real-time audio cues/audio coaching | No |
| Displays best lap time, adaptive delta time, number of laps and total session time | No |
| Supports multiple cars | No |
| Downloadable USGS Quad Sheets | No |
| Max amps total | No |
| 10 Hz multi-GNSS positioning | No |
| Pair with Garmin PowerSwitch™ digital switch box | Yes |
| Easy Route Planner with GPX file sharing | Yes |
| Compass | Yes |
| Compatible with Garmin Explore™ app | No |
| Galileo | Yes |
| Truck-specific speed limits | No |
| Group Ride Range | typically 1 mile |
| Incident Detection (G-Sensor) | No |
| Popular truck route data | No |
| 3-D buildings and terrain | No |
What's in the Box:
- Tread
- Trim ring kit (blue, black, red, and green)
- Tube mount kit
- Power cable
- USB cable
- Documentation
