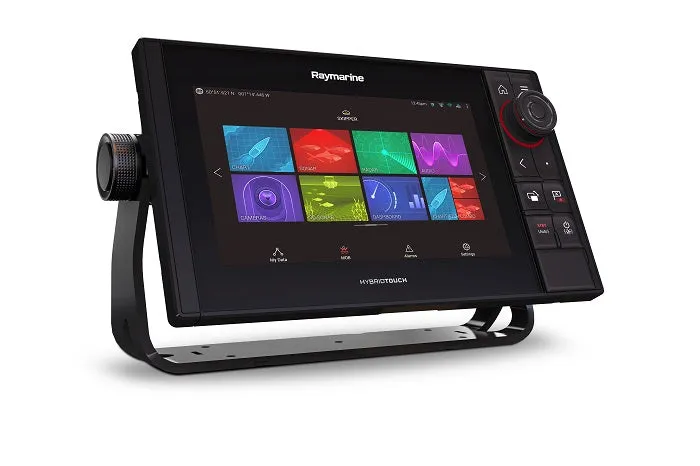

Raymarine Axiom Pro 9S MFD No Transducer Navionics Plus North America

Raymarine Axiom Pro 9S 9" MFD With Single Channel CHIRP and Navionics Plus North America

• High CHIRP


• NMEA2000 & NMEA0183


• Sonar Scroll Back


• HybridTouch™


• Quad Core Processor


• Optical Bonding Technology & IPS Displays


• IP & Analog Video


• Clear Cruise™


• Quantum CHIRP, HD & SHD


• NMEA2000 & NMEA0183

Display Size
9" IPS Optically Bonded LCD

Display Resolution
1280 x 720 WXGA

Display Type
Multitouch

Brightness
1,200 nits

Viewing Angle
Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)

Mounting
Top, Front, Bracket

Waterproof Rating
IPX6 / IPX7

Operating Temp
minus 13deg F to 131deg F (-25deg C to 55deg C)

Storage Temp
minus 22deg F to 158deg F (-30deg C to 70deg C)

Sensors

Sonar Type - Built-in
High CHIRP

Sonar Connections
25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.

Sonar Depth
CHIRP Sonar = 900 feet (974 m)
DownVision™ = 600 feet (183 m)

External Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet

Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars

AIS
Yes - N2K compatible

GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)

Autopilot Control
Yes - Evolution Autopilot

Thermal Night Vision
Yes - IP or Analogue

Video / Camera
1 x Analogue input (BNC) Up to 10 IP Cameras

Weather
GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only

Audio
N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]

Digital Switching
Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]

Remote Control
RMK-10 (A80438) & RCU-3 (E62351)

Networking

Ethernet
2 x 10/100/1000 Mbits/ Network (RayNet)

NMEA0183
1 Transmit / 2 Receive

NMEA2000
1 x NMEA2000 port (DeviceNet microC)

SeaTalkNG
Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)

USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)

Wi-Fi
WiFi - 802.11 a / b / g / n

BlueTooth
Bluetooth 4.0 Low Energy Power Class 1.5 [Available in future Lighthouse 3 software update]

Navigation

Cartography
Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX [*C-MAP chart compatibility available in future Lighthouse 3 software update]

Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal
16GB Solid State

16GB Solid State
2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

Input Voltage
12V and 24V DC (8 V to 32 DC)

Input Draw
~20W

Dimensions
11.9" x 6.85" x 2.56" (300 x 174 x 65 mm)

What's in the Box:

• Axiom Pro 9S


• RayNet (F) to Raynet (F) Cable — 2M (A62361)


• Trunnion Cover


• Trunnion Knobs


• Trunnion Bracket


• Suncover (A80534)


• Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)


• Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)


• Panel Seal Gasket


• Bezel Pieces and Home / Menu Button


• Navionics Plus North America Charts


• Mounting Fixings


• Quick Start Guide


• Warranty Card


• Raymarine window decal
